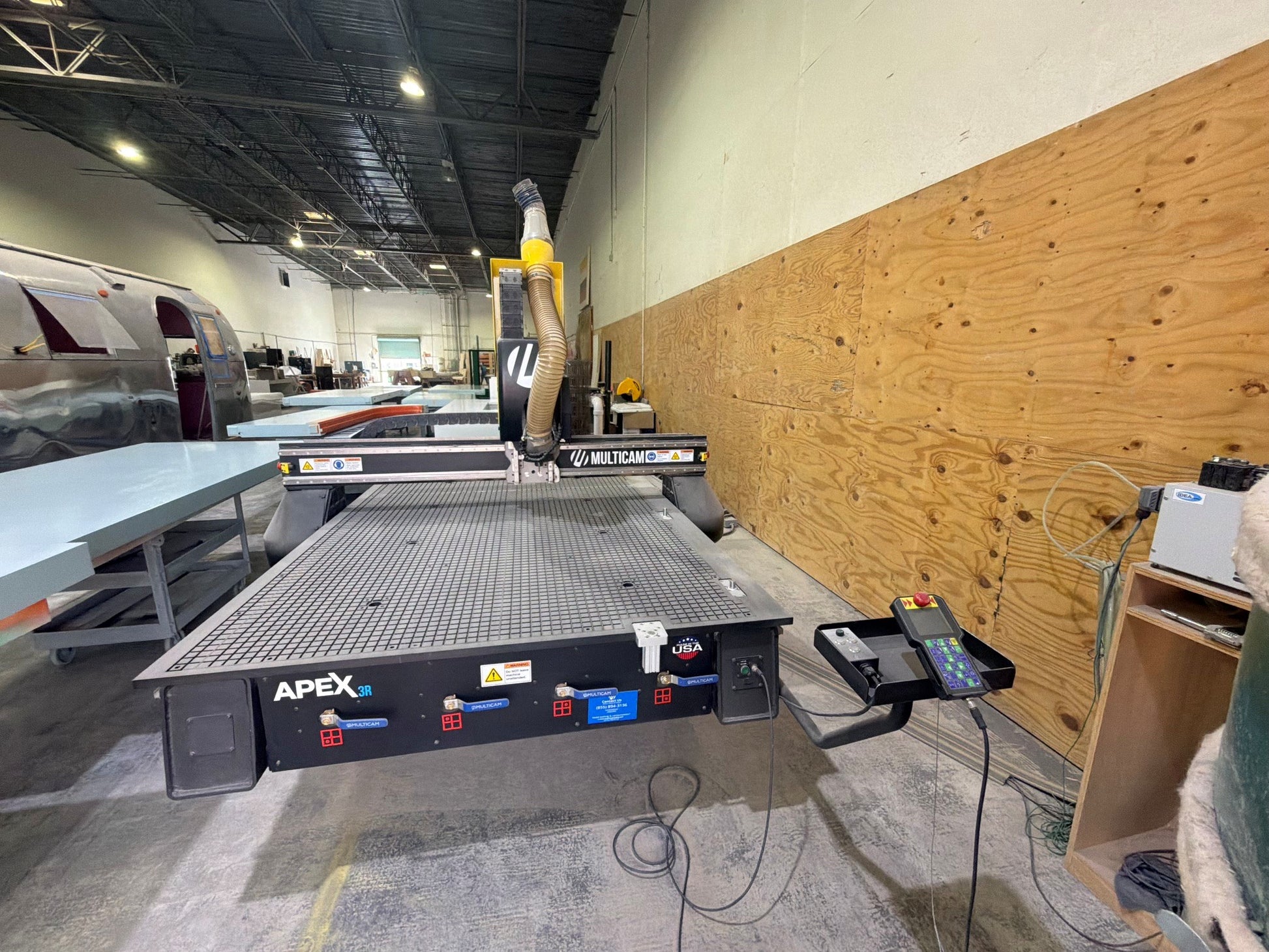

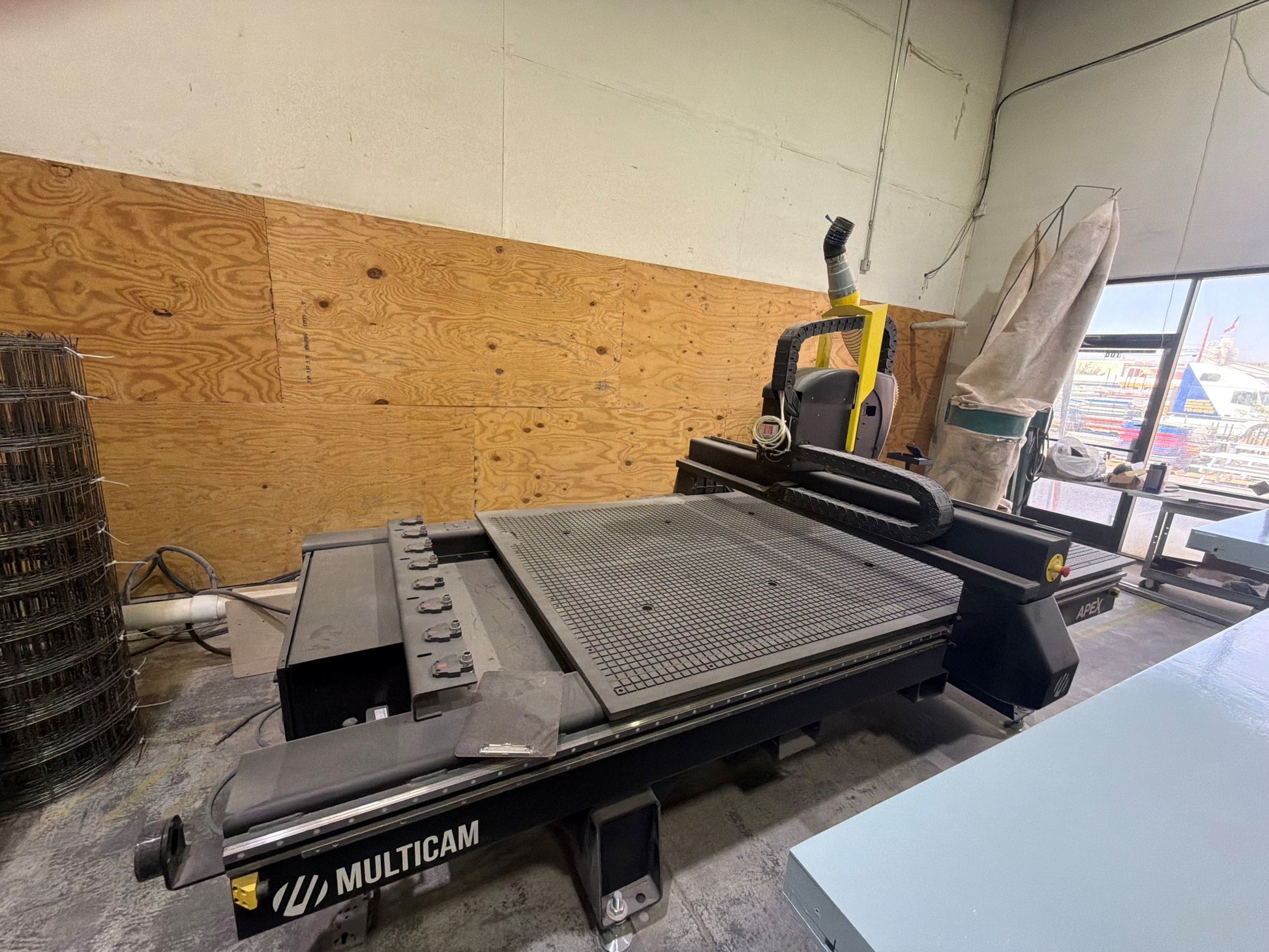

2023 Multicam APEX3R CNC Router

2023 Multicam APEX3R CNC Router

The 2023 Multicam APEX3R is a production-grade CNC router built for demanding fabrication environments.

Machine Specifications

• Work Area: 63 x 120 in (1,600 x 3,048 mm)
• Frame: Single-piece all-welded tube frame, stress-relieved and milled axis datums
• Drive System: All-axis servo drive; X & Y planetary gearbox with helical racks & pinions
• Z Axis: Ball screw
• Repeatability: ±0.001 in (±0.025 mm)
• Max Slew Rate: 2,758 IPM
• Max Cut Thickness: 4 in (100 mm) standard; 5 in (127 mm) with raised gantry option
• Gantry: 200 Standard Width, 6-inch clearance
• Controller Display: Units in Inches
• Machine Voltage: 208V 3-Phase

Spindle & Tool Change

• Spindle: Umbra 8.5 HP HSK 32 Pneumatic Chuck (ER25 / 32,000 RPM), water-cooled, 208V 3-Phase
• Heat Exchanger: For liquid-cooled spindles, 208–230VAC
• Dust Boot: Programmable – Apex3R 90mm Nose
• ATC: 8-Position Linear Tool Changer (HSK 32 tool holders, 3-2XX series)
• Tool Holder Kit HSK32 Qty 8 included
• Techniks HSK32 Stand & ER25 Wrench Kit included

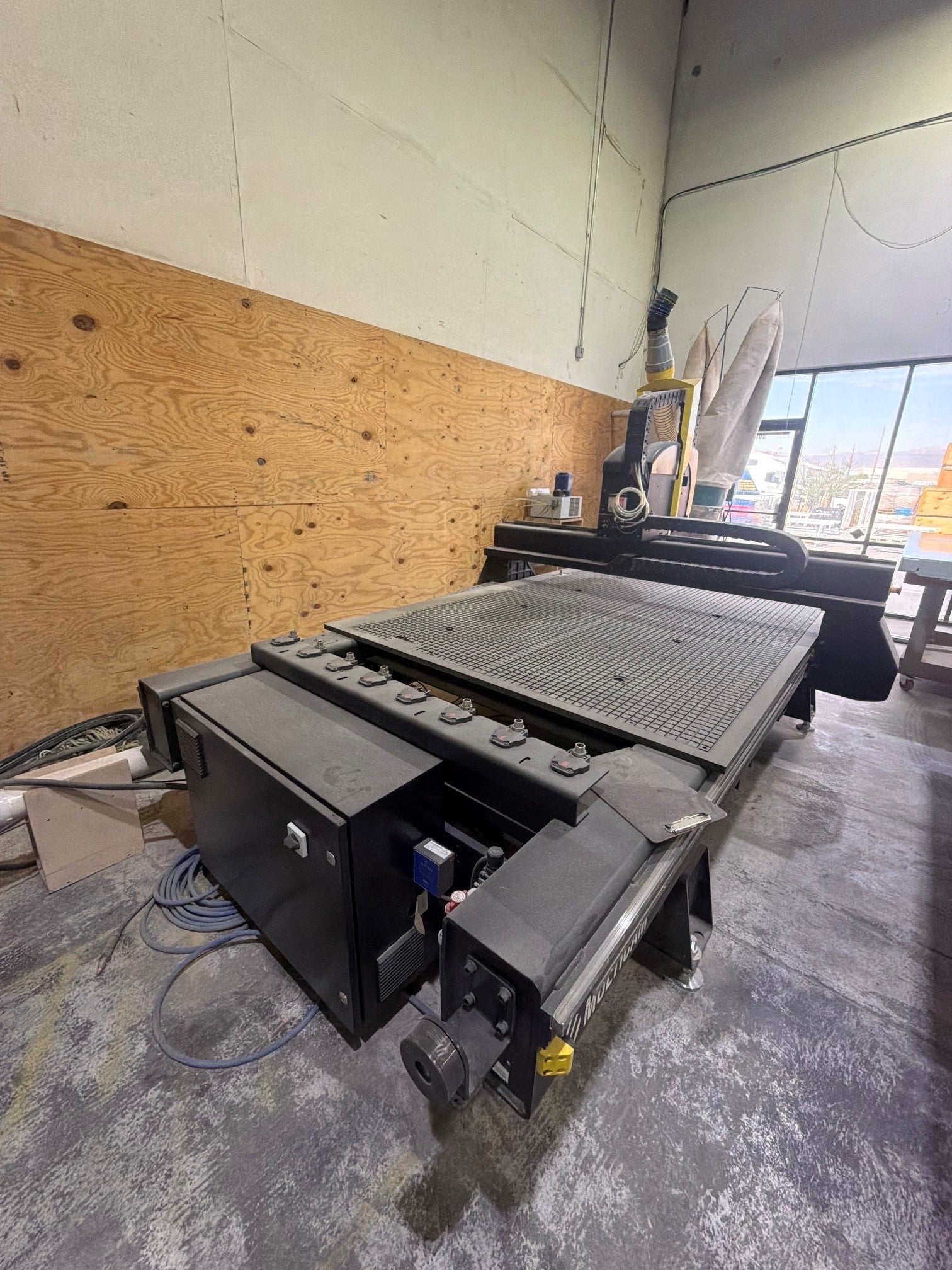

Table & Vacuum System

• Table Top: Phenolic 3-204-R16 with XA Front Pins
• Grid: Standard Grid
• Vacuum: 4-Zone High Pressure Manual Ball Valve Vacuum Assembly

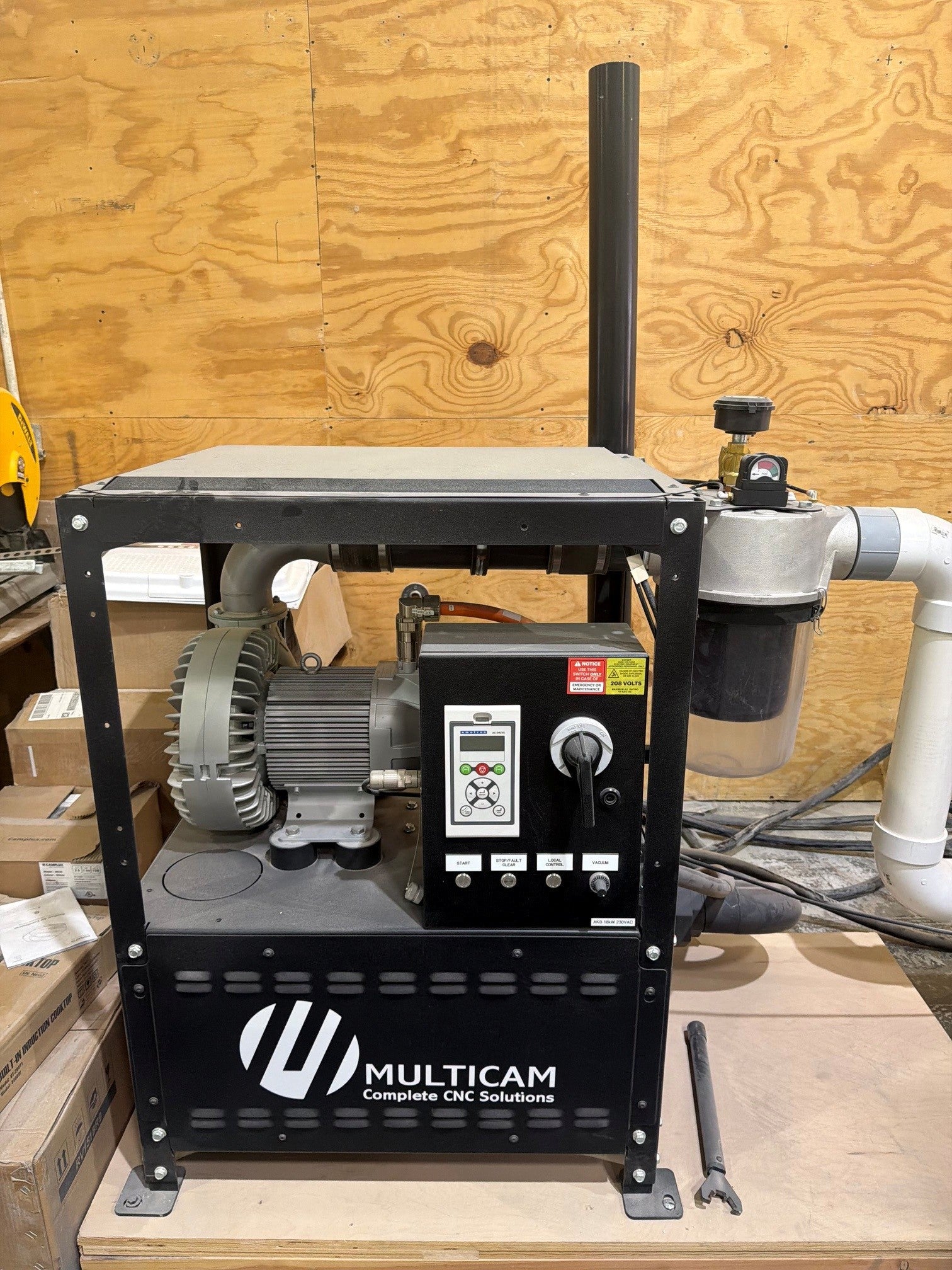

• Blower: 24 HP Kinetic Blower w/ VFD Control, Filter & Exhaust Pipe (16 Hg / 580 CFM), 208V 3-Phase
• Basic Plumbing Connection Kit for vacuum pumps up to 4-inch inlet included
• Locator Pins – Front Right Location

Additional Features & Accessories Included

• Cross Hair Laser Pointer for home position setting
• Auto Misting / Lubricating System (Pneumatic chuck) with flexible loc-line nozzles – Maglube Light Duty Misting Fluid
• Surface Probe and Auto Calibration Sensor – Apex3R
• Z-Carriage, No Knife Kit
• Spoilboard Cutter – 3-Flute Carbide Insert, 1/2-inch shank
• 2.5 in 9-Pack Replacement Inserts
• Main Electrical Enclosure Kit – Apex3R 208V 3-Phase
• Apex3R Electrical Kit

Located in Las Vegas, NV
Asset #219947-01
